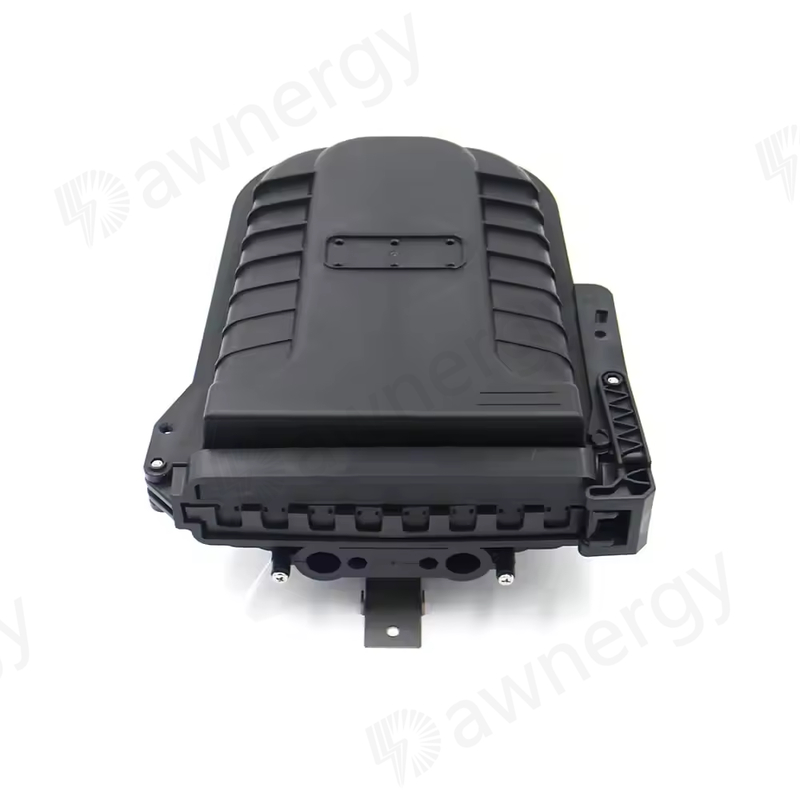

DA-FDB-16G-PA-12 Fiber Optic Distribution Box

Dawnergy's DA-FDB-16G-PA-12 fiber optic distribution box serves as a termination point for feeder cables to connect with drop cables in FTTx communication network systems. This unit enables fiber splicing, splitting, and distribution while providing solid protection and management for FTTx network infrastructure.

• Constructed from high-quality engineering plastic with excellent strength
• IP65 Protection Level rating
• Easy-open design with superior waterproof performance for outdoor environments
• Double-page design simplifies installation and maintenance with separated fusion and termination areas
• Drop leaf accommodates 1×8 or 1×16 mini-PLC splitter installation

• FTTH Solutions

• Operating temperature range: -40℃ to +85℃
• Relative humidity: ≤85% at +30℃
• Atmospheric pressure: 70KPa to 106Kpa

• Insulation resistance: ≥2 MΩ/500V(DC) between grounding device and metal parts
• Voltage resistance: ≥3000V(DC)/min between grounding device and box metal parts (no puncture/flashover)

DA-FDB-16G-PA-12: Black; PP+GF construction; Includes adapter panel for maximum 16 SC type adapters, 4 main cable ports and 16 drop cable ports; Compatible with 1×8 or 1×16 mini type PLC splitter (PLC splitter not included); Dimensions: 305 × 216 × 107 mm; Wall mounting accessories included.
